Pipe Thrusting MachinePipe Thrusting Machine XDN600

[section bg_color=”rgb(255,255,255)”]

[row]

[col span__sm=”12″]

[tabgroup style=”tabs” nav_size=”xlarge”]

[tab title=”DESCRIPTION”]

1.Small space：The design of lightweight compact disassembled structure make occupation smaller which can greatly reduce the impact on road traffic.

2.Visual remote control：When jacking operation, operator in the operating room can be real-time monitoring of the whole construction process and accurately master the exact cutting speed, travel path and work conditions, etc., realize visualization of remote control.

3.Rock breaking ability：The pipe jacking machine can break rock hardness up to 300MPa with conical butterfly hob.

4.Eccentric cone crusher：The special design of large eccentric cone crusher can raise the working efficiency with secondary crushing.

5.Infinite speed：According to the conditions, the operator can control the speed of jacking cylinders and the flow of slurry by adjusting the frequency converter,which makes great adaptability and safety.

[/tab]
[tab title=”PARAMENTER SPARE”]

Project	Unit	Parameter
Articulated shield
Pipe standard diameter	(mm)	Φ600
Extend diameter	(mm)	Φ500
Outer diameter× length	(mm)	Φ795×2840
Cutting wheels
Motor power	(kW)	22×1
Torque	(kN.m)	15.3
Torque	(r/min)	13.7
Roll correction system
Force per cylinder	(kN)	310
Cylinder number	-	3
Steering angle	(°)	3
Motor power	(kW)	0.18
Slurry line diameter	(mm)	Φ75
Total power	(kW)	22.18
Weight	(kg)	3750
Jacking cylinders
Thrust	(kN)	1000
Number	-	2
Stroke	(mm)	760×2
Shaft dimensions
Launch shaft dimensions	(mm)	Φ2540
Reception shaft dimensions	(mm)	Φ1540
Charge pump Motor power	(kW)	5.5
Discharge pump Motor power	(kW)	11
Injection pump Motor power	(kW)	4

[/tab]
[tab title=”PRODUCT IMAGE”]

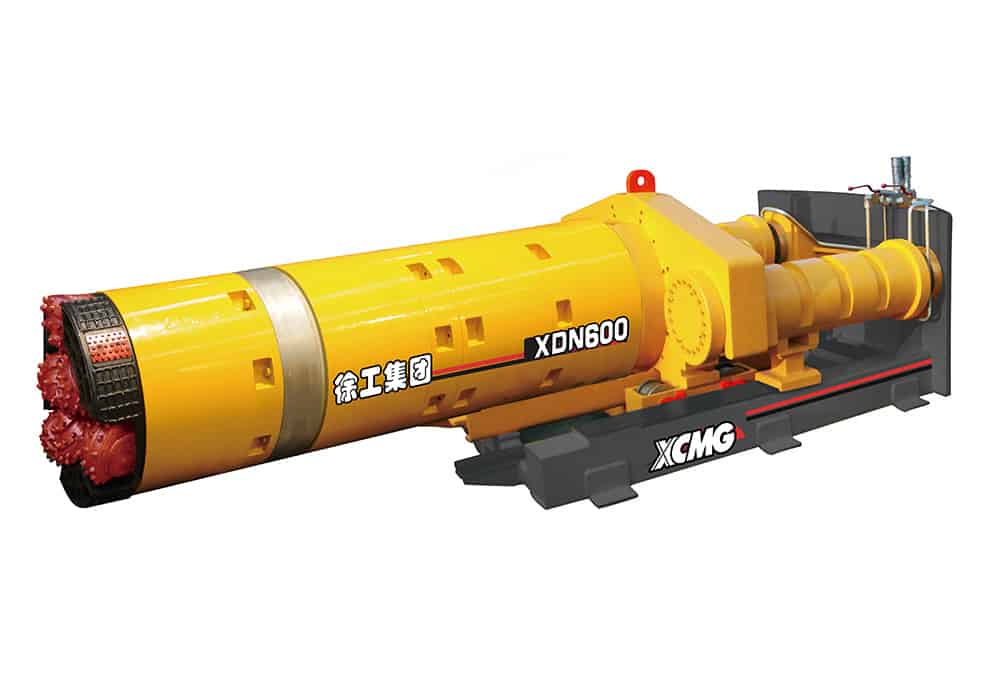

[ux_image id=”1301″ image_size=”original” width=”50″]
