XCMG Official Mining Roadheader Boring Machine EBZ260

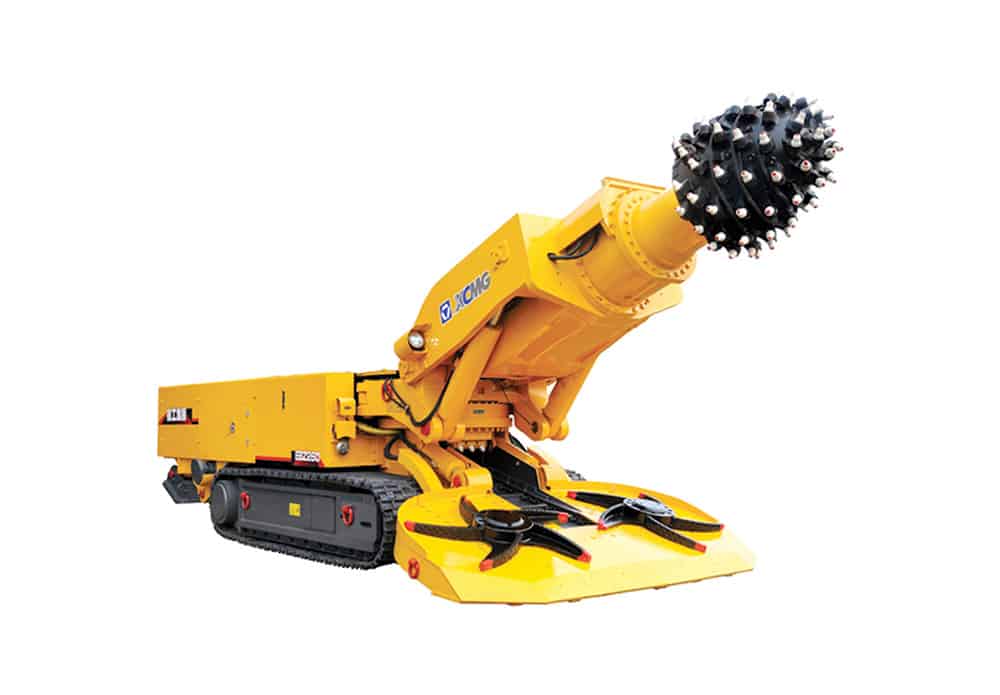

EBZ260 roadheader is designed as compact structure, low body, low center of gravity. easy operation, good working performance.
1、Electric control system
EBZ260 roadheader adol11ts flame proof and intrinsically safe switch box and control box with small size, light weight, flexible operation, which is safety and reliable: main controller is installed in a closed casing that can effectively block out electromagnetic interference; working condition is shown with LCD screen, menu mode is used for operating interface with flexible and safe parameter setting; it is equipped with functions such as overvoltage, motor overload, open-phase, short circuit, over temperature and earth leakage lockout.
2、Hydraulic system
The hydraulic system of EBZ260 roadheader adopts transfer case, several pumps control, with main hydraulic components coming from international brands.
3、Cutting head
The cutting head is optimized by utilizing simulation technique and picks come from Kennametal Co., Ltd. With reasonable layout and strong rock breaking capacity.
4、Spraying system
Spraying system of EBZ260 roadheader include inside and outside spray systems, of which the front is after-pick spraying which is used to strength outside spraying, the latter is reasonable in design and equipped with leakage detection function.
5、First freighter
Straight structure is adopted for first freighter, which can achieve smooth lapping with hauler bed and transportation.
6、Traveling mechanism
The traveling mechanism is a high integration of internationally advanced motor and reducer, whose big output torque can adapt to operations with large dip angle.
If there is limit for weight or total weight during transportation, it can be disassembled for transportation.
| Project | Unit | Parameter |
|---|---|---|
| Total weight | (kg) | 85000 |
| Overall dimension | ||
| Total length without additional conveyor | (mm) | 11677 |
| Total width Ramp plate | (mm) | 3600/3200/3000/2800 |
| Total width Main frame | (mm) | 2700 |
| Total height The highest point of cutting head for laying | (mm) | 2650 |
| Total height Main frame | (mm) | 2000 |
| Undercut max telescoping/non-telescoping | (mm) | 275 |
| Ground clearance of machine | (mm) | 260 |
| Height Cutting cross section | (mm) | 5030 |
| WidthCutting cross section | (mm) | 5950 |
| Area Cutting cross section | (m²) | 30 |
| Gantry height | (mm) | 400 |
| Max./Economic compressure strength for cutting coal | (MPa) | ≤110/90 |
| Upgrade ability | (°) | ±18 |
| Travel speed | (m/min) | 7 |
| Minimum curve radius | - | 0.165 |
| Average floor pressure | (MPa) | 447 |
| Total installed power | (kW) | 260/200 |
| Installed power of cutting motor | (kW) | 132 |
| Installed power of pump motor | (kW) | AC1140 |
| Supply voltage | (V) | 50 |
| Line frequency | (Hz) | 54/27 |
| Rotation speed of cutting head | (r/min) | 54/27 |
| Loading capacity | (m³/min) | Star wheel type/4.3 |
| Crawler width | (mm) | 650 |
| Out width of crawlers | (mm) | 2700 |
| Tensioning style | - | Cylinder tensioning and snap-gauge locking |
| Pressure of water spraying | (MPa) | External spraying≥1.5；Internal spraying≥3 |
| Max.non-removable parts size | (mm) | 3755×1500×1470 |
| Max.non-removable parts mass | (kg) | 8700 |
