XCMG Official Tunnel Roadheader XTR6/260

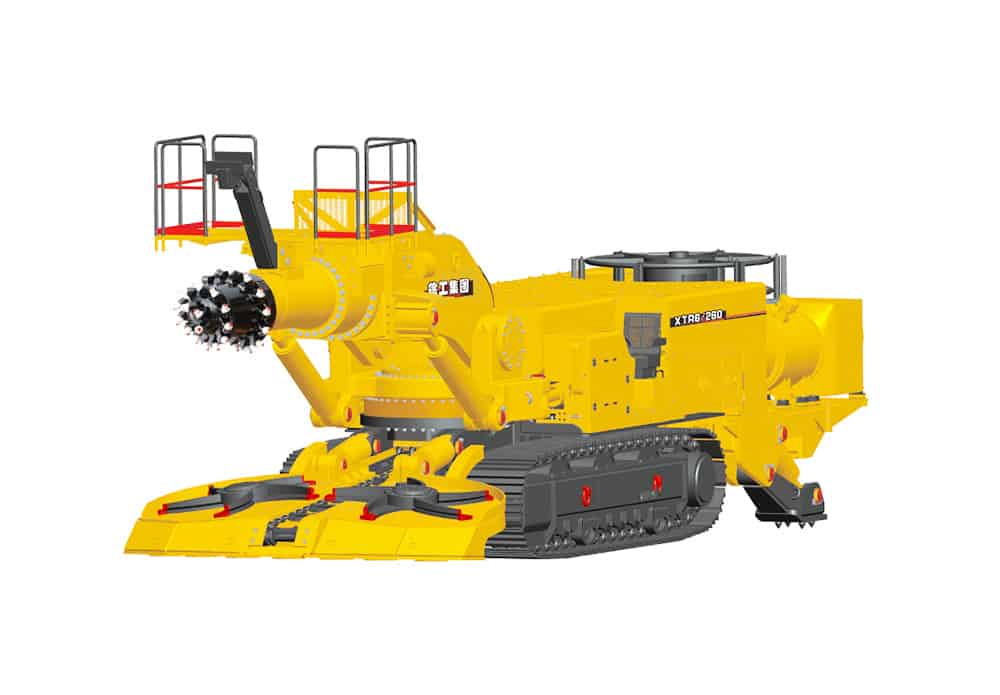

XTR6/260 Tunnel Roadheader
XTR6/260 Boom-Type Tunnel Roadheader is equipped with cutting structure and a supporting structure, a control table, body assembly, walking institutions, hydraulic system, spray dust removal system, electrical system, lubricating system, a guard board assembly, identification and coating, cooling system, a shovel plate assembly, first transport，second transport. The machine has high safety and reliability. High-efficiency cutting head with double helix line is used in tunnel, which is used to break the rock, and the cutting tooth is less. Optionally equipped with airborne dust removal device, dust removal effect is good, and it can effectively reduce the dust pollution. Use air cooling, the cooling effect is good, in the absence of external water source, the host can work properly. With the remote control, remote control of equipment can be realized, and the personal safety and machine equipment can be effectively protected, improve the safety and working efficiency.
| Project | Unit | Parameter |
|---|---|---|
| Total weight | (kg) | 90000 |
| Overall dimension | ||
| Total length without additional conveyor) | (mm) | 14000 |
| Total width Ramp plate | (mm) | 3600 |
| Total width Aggregat | (mm) | － |
| Total width Main frame | (mm) | 2600 |
| Total height The highest point of cutting head for laying | (mm) | 4290 |
| Total height Main frame | (mm) | 2610 |
| Undercut max telescoping/non-telescoping | (mm) | 200 |
| Ground clearance of machine | (mm) | 270 |
| Height Cutting cross section | (mm) | 6200 |
| Width Cutting cross section | (mm) | 6000 |
| Gantry height | (mm) | 300 |
| Max./Economic compressure strength for cutting coal | (MPa) | ≤110/70 |
| Travel speed | (m/min) | 6 |
| Installed power of cutting motor | (kW) | 260/200 |
| Installed power of pump motor | (kW) | 132 |
| Supply voltage | (V) | AC1140 |
| Line frequency | (Hz) | 50 |
| Loading capacity | (m³/min) | Star wheel type/4.75 |
| Pressure of water spraying | (MPa) | External spraying:2 |
