Deep Well Drilling RigXSL 3/160

SKU: N/A

Request a Quote

Description

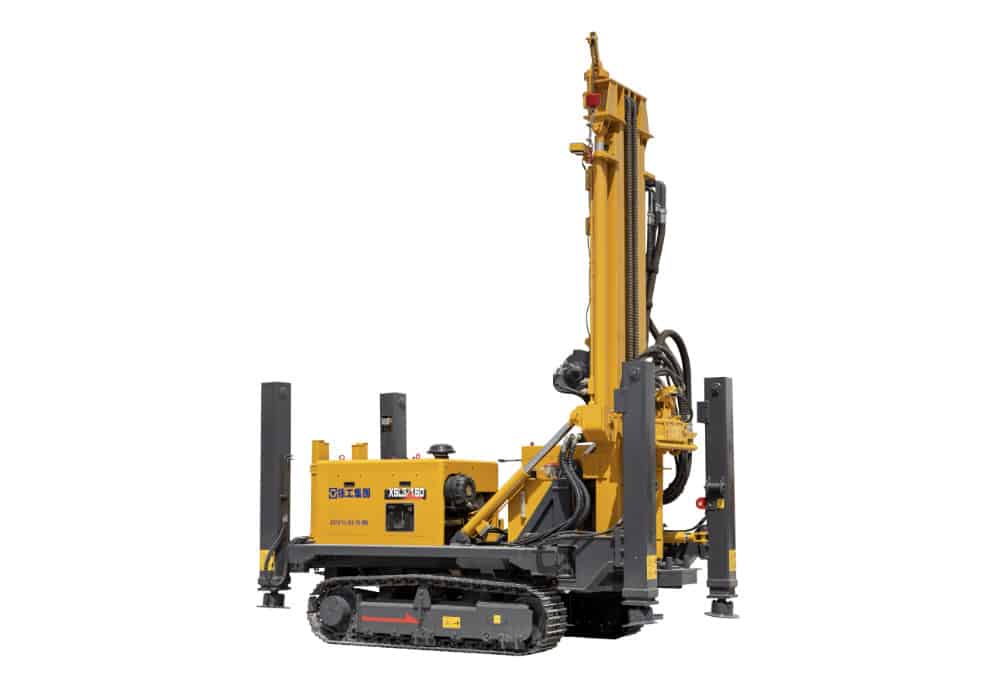

XCMG deep water well drilling rig 300 meter machine XSL3-160.

XCMG water well drilling rig 300 meter machine XSL3-160 uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency.

1, Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.

2, The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.

3, Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.

4, The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work eficiency.

5,  Unique hydraulic matching technology for high system efficiency.

6,  Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of diling pressure according to dilling depth.

Specification

 SpecificationUnitParameter
Drilling CapabilityDrilling Depthm300 (⌀89)
Max Diameter of Working Floormm⌀300
Feeding SystemMax Lifting capacitykN160
Max feeding capacitykN80
Max lifting speedm/min 32
Max feeding speedm/min60
Strokemm7000 (3800)
Top DriveMax torqueNm6600/3300
Max speedr/min95/190
I.D.mm⌀45
Floating distancemm/
Max tilting angle/
Deck EngineType/YC4A 125-T300
Rated PowerkW92
Main WinchHoisting capacitykN/
Auxiliary WinchHositing capacitykN15
Foam PumpMax FlowL/min35
Max PressureMPa4
Max PreasureMPa8
GeneratorsPowerkW24
PressureV400
FrequencyHz50
