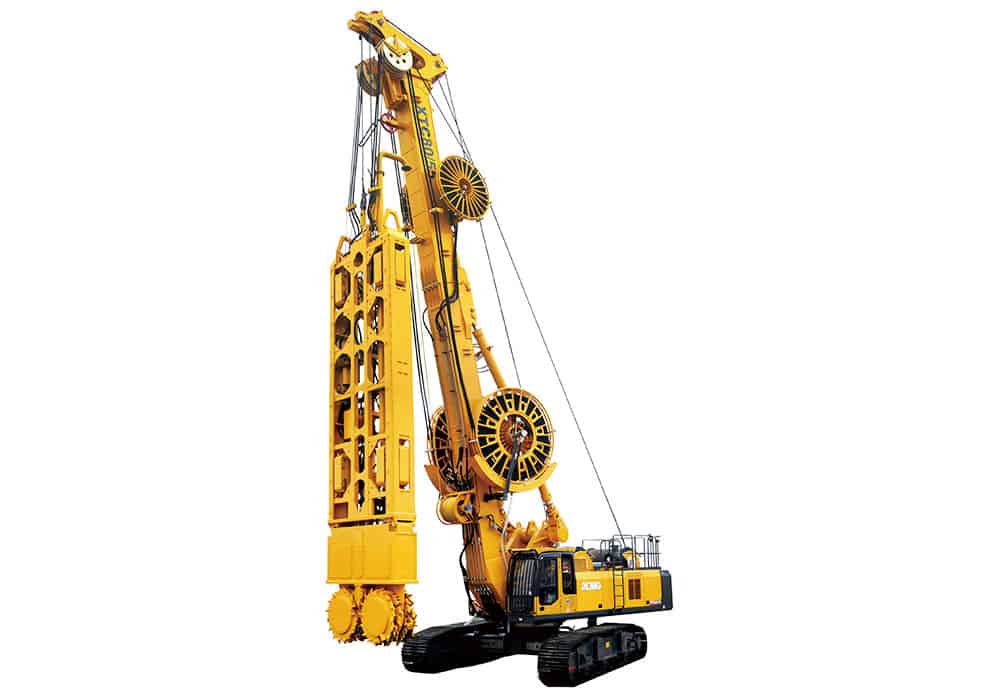

XCMG Official XTC series Trench Cutter XTC 80/55

• Front/rear single rope and dual winches, which substantially improves the rope’s,longest 80m.
• The specific extra-wide chassis manufactured with XCMG’s mature technologies ,having large swiveling bearing,provides super stability. Max. Distance between tracks: 4900mm.
• The slewing mechanism is adopted with imported elements, super large slewing support improve the reliability of the grab. The platform is designed through 3D software-aided force analysis, stress analysis and rational layout.
• The control system of Double winch equipped with an encoder ensures the accurate synchronization of double winches reduces the frequency of synchronized adjustment and increases the construction efficiency.
• Adopting import double-speed gear box, main winch can accurately control trench cutter’s quick up-down motion and low speed feed. Electro-hydraulically proportional follow-up control system can ensure the synchronism of slurry hose drum, hydraulic hose drum and main winch.
• Air lift reverse circulation slagging mode, which can reduce the consumption of fuel & construction costs effectively.
• Self-developed milling wheel-drive structure, easy to get the spare parts, low cost and short time of maintenance.
• With the convenient function‘one machine, two configurations’, which can achieve universal with XG600D.

[/bt_bb_text][bt_bb_separator top_spacing=”” bottom_spacing=”normal” border_style=”none” border_width=”” responsive=”” publish_datetime=”” expiry_datetime=”” animation=”no_animation” el_id=”” el_class=”” el_style=””][/bt_bb_separator][bt_bb_headline font_subset=”latin,latin-ext” superheadline=”” headline=”Specification” subheadline=”” html_tag=”h3″ size=”inherit%$%%$%%$%%$%” align=”inherit%$%%$%%$%%$%” dash=”none” color_scheme=”” color=”” supertitle_position=”” font=”inherit” font_size=”” url=”” target=”_self” responsive=”” publish_datetime=”” expiry_datetime=”” animation=”no_animation” el_id=”” el_class=”” el_style=”” font_weight=”” semitransparent_text=””][/bt_bb_headline][bt_bb_text]

Project	Unit	Parameter
Working parameter
Wall thickness	(mm)	800~1200
Wall depth	(m)	55
Main data
Max. hoisting force	(kN)	600
Max. hoisting speed	(m/min)	40
Max. torqe	(kN.m)	2×80
Rotary speed	(r/min)	0~25
Slag discharge way		Air
Mud pump ability	(m³/h)	-
Power Parameter
Engine model		CUMMINS QSM11
Engine rated power	(kW/r/min)	298/2100
Undercarrige
Max. travelling speed	(km/h)	1.2
Max. grade ability	(%)	30
Max. clearance	(mm)	450
Track shoe width	(mm)	800
Distance between tracks	(mm)	3500~4900
Working condition
Total lengh	(mm)	11650
Total width	(mm)	4900
Total height	(mm)	18914
Working radius	(mm)	4800~5800
Transportation condition
Total lengh	(mm)	16120
Total width	(mm)	3500
Total height	(mm)	3800
System parameter
Max.system pressure	(MPa)	32
Max. system flow	(L/min)	760
Weight parameter
Bare weight	(t)	95
Frame weight	(t)	36~40
